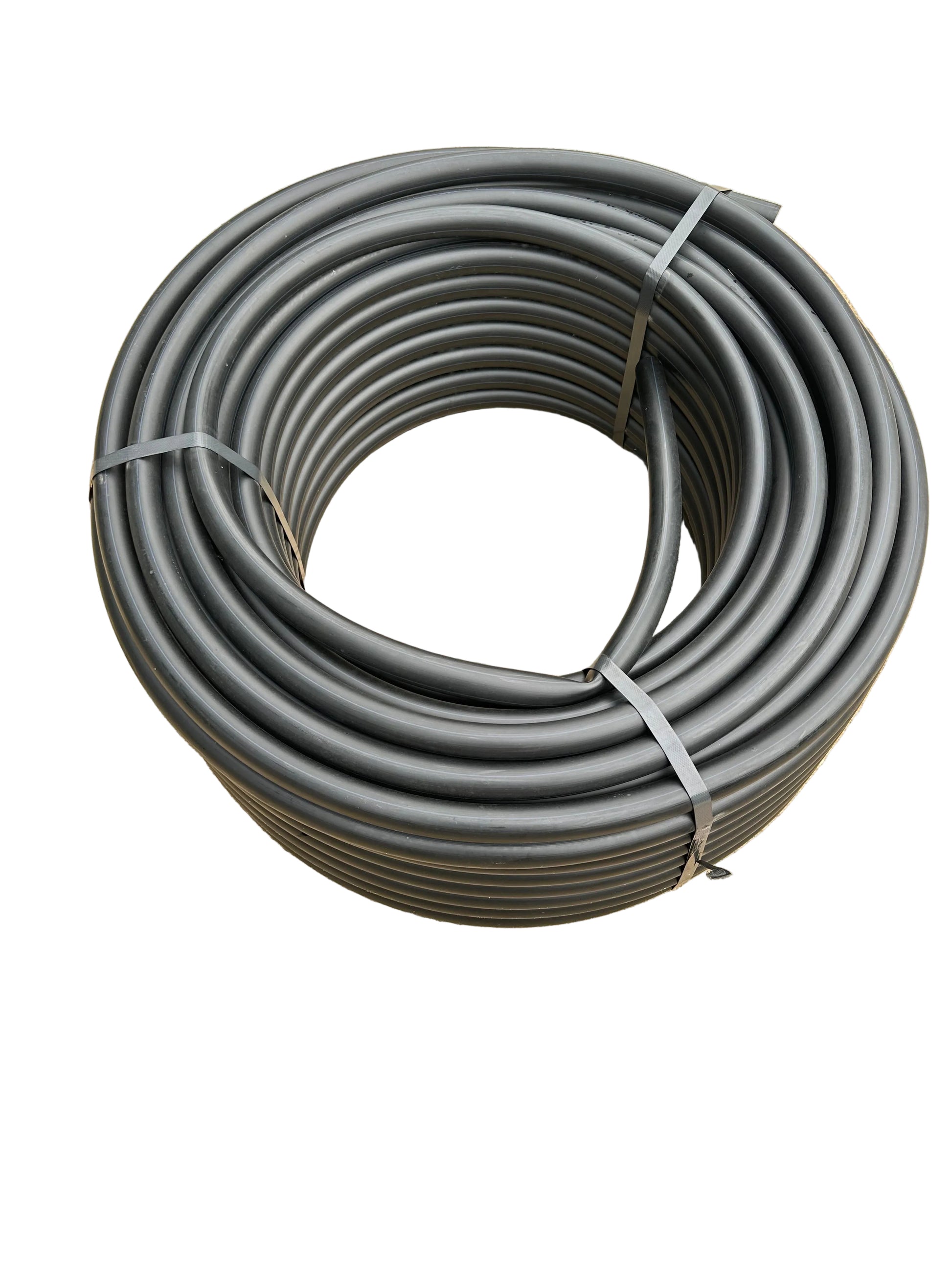

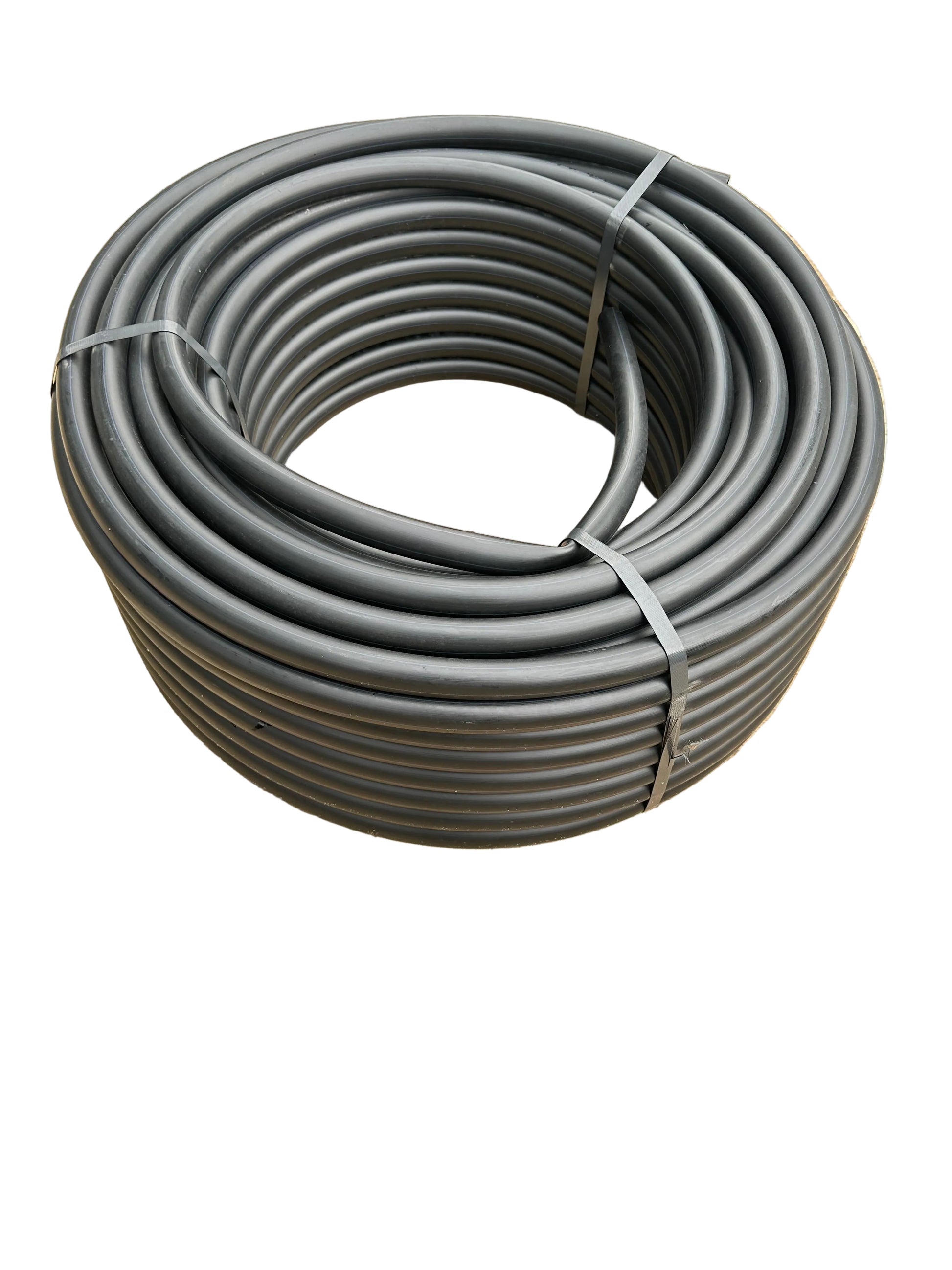

32mm HDPE pipe PN16 (16-bar rated) 100 meters coil

The 32mm HDPE Pipe (PN16) is a premium-grade high-density polyethylene pipe engineered for high-pressure fluid transportation. With a 16-bar (PN16) rating, this pipe is designed to withstand significant internal pressure, making it the professional choice for demanding irrigation systems, municipal water mains, and industrial plumbing projects.

Features & Benefits

1. PN16 Pressure Rating:

   Built to handle up to 16 bars of pressure 1.6 MPa, making it safe for high-pressure pumps and steep terrain where gravity pressure builds up.

2. PE100 High-Density Material:

   Offers superior strength-to-density ratio and higher resistance to slow crack growth compared to lower grades.

3. 100-Meter Continuous Coil:

   Minimizes the need for couplings and connectors, significantly reducing labor costs and the risk of future leaks.

4. UV-Stabilized Black Finish:

   Designed to withstand harsh sunlight and tropical heat without becoming brittle, perfect for above-ground or buried installations.

5. Chemical & Corrosion Resistance:

   Will not rust or corrode when in contact with acidic soils or treated water, ensuring a lifespan of 50+ years.

6. Flexible & Durable:

   Can be bent around obstacles and follows the contours of the land, requiring fewer elbow fittings than rigid PVC or metal pipes.

Technical Specifications

• Outer Diameter: 32mm

• Pressure Rating: PN16 (16 Bar / 232 PSI)

• Material Grade: PE100 / HDPE

• Standard: ISO 4427 / DIN 8074

• Wall Thickness: Approx. 2.4mm – 3.0mm (Standard for PN16)

• Coil Length: 100 Meters

• Color: Black with Blue stripes (indicating potable water use)

Best Applications

• Mainlines for Irrigation: Ideal for connecting high-pressure gasoline or electric pumps to field sprinklers.

• Borehole Installations: Durable enough to serve as a delivery pipe for submersible pumps in deep wells.

• Residential Water Supply: Reliable for long-distance water transport from a main tank to various points on a property.

• Mining & Industrial: Used for transporting chemicals or slurry where high pressure and chemical resistance are required.
