IDEAL APPLICATIONS & LIMITATIONS
- Agricultural field flooding, crop irrigation, and large-scale water distribution over long distances.
- Heavy-duty continuous dewatering on construction sites, excavations, and flood control.
- High-capacity water transfer between reservoirs, large storage tanks, or fish ponds with minimal fuel consumption.
- NOT FOR TRASH OR CHEMICALS: This clear/clean water diesel pump is not intended for pumping thick sludge, heavy mud, raw sewage, corrosive chemicals, or boiling liquids. Avoid pumping hard debris larger than 3mm to prevent impeller and seal damage.
Product Specifications
| Specification | Value |
|---|---|
| Engine Type | Single-cylinder, 4-stroke, air-cooled, direct-injection diesel engine |
| Engine Model / Displacement | Direct Injection Diesel Engine (~306cc) |
| Horsepower Rating | Approx. 6.0 HP (4.8 kW / 3600 rpm) |
| Max. Flow Rate | 1000 liters per minute (60 m³/h) |
| Max. Head (Lift Height) | 31 meters |
| Max. Suction Lift Depth | 8 meters |
| Connection Diameter | 80mm x 80mm (3 inch x 3 inch) |
| Starting System | Recoil pull-start |
| Fuel Type | Automotive Diesel Fuel |
| Max. Liquid Temperature | +55 °C |
| Fuel Tank Capacity | 3.5 – 12.5 liters (depending on frame/tank configuration) |
| Engine Oil Capacity | 1.1 liters (10W-30 / 15W-40 Diesel Engine Oil) |
| Max
CURABITUR ALIQUET QUAM POSUERE DO YOU LIKE THE THEME? SHARE WITH YOUR FRIENDS!Will be used in accordance with our Privacy Policy
Sign in

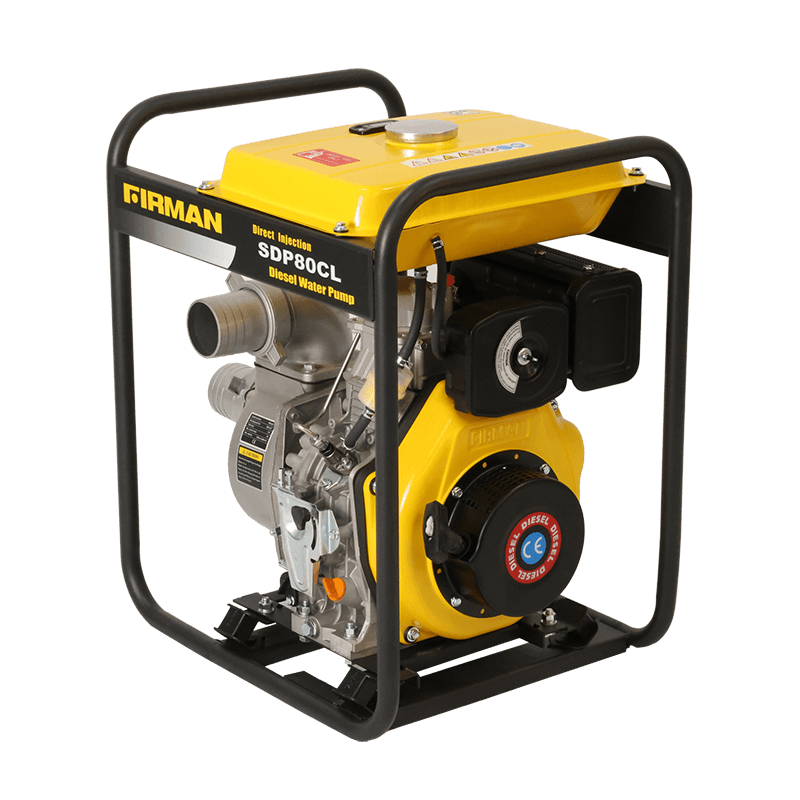

No account yet? Create an Account Sumec Firman Diesel Water Pump SDP80CL 3-inches |
