IDEAL APPLICATIONS & LIMITATIONS
- Agricultural crop irrigation, field flooding, and large-scale sprinkling.
- Dewatering construction trenches, flooded basements, or pooling sites.
- Fast transfer of water between distant storage tanks, reservoirs, or fish ponds.
- NOT FOR TRASH OR CHEMICALS: This clear-water pump is not intended for pumping heavy mud, thick sludge, sewage, corrosive chemicals, or boiling liquids. Avoid pumping hard debris larger than 3mm to prevent impeller damage.

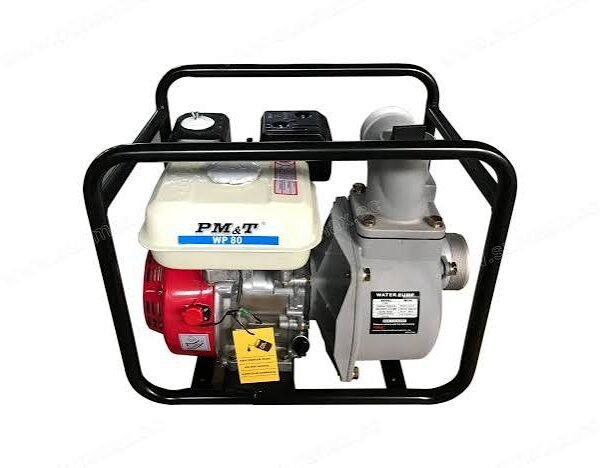

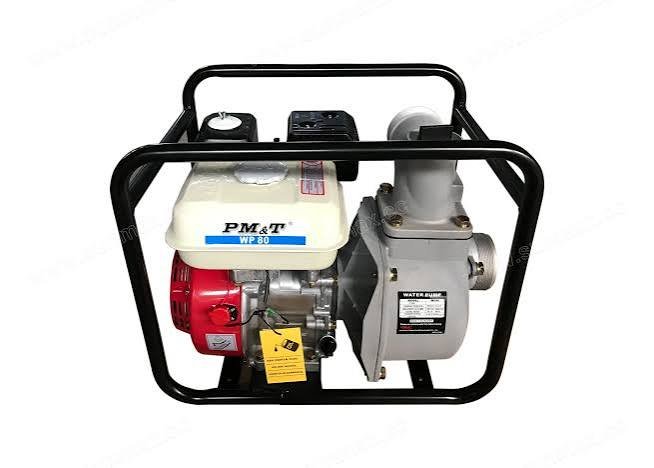

Product Specifications
| Specification | Value |
|---|---|
| Engine Type | Single-cylinder, 4-stroke, air-cooled, OHV |
| Engine Model | EF160 |
| Horsepower Rating | 5.5 HP (Net Power: approx. 3.4 kW / 3600 rpm) |
| Max. Flow Rate | 1000 liters per minute (60 m³/h) |
| Max. Suction Lift Depth | 8 meters |
| Connection Diameter | 80mm x 80mm ( 3 inch x 3 inch) |
| Displacement | 163cc |
| Starting System | Recoil pull-start |
| Fuel Type | Unleaded Gasoline |
| Max. Liquid Temperature | +55 °C |
| Fuel Tank Capacity | 3.6 liters |
| Engine Oil Capacity | 0.6 liters |
| Max. Particle Size | Up to 8mm for soft solids and Up to 3mm for hard debris |
| Net Weight | ~26.8 kg |
| Dimensions | 51.8 x 38 x 45.5 cm |
